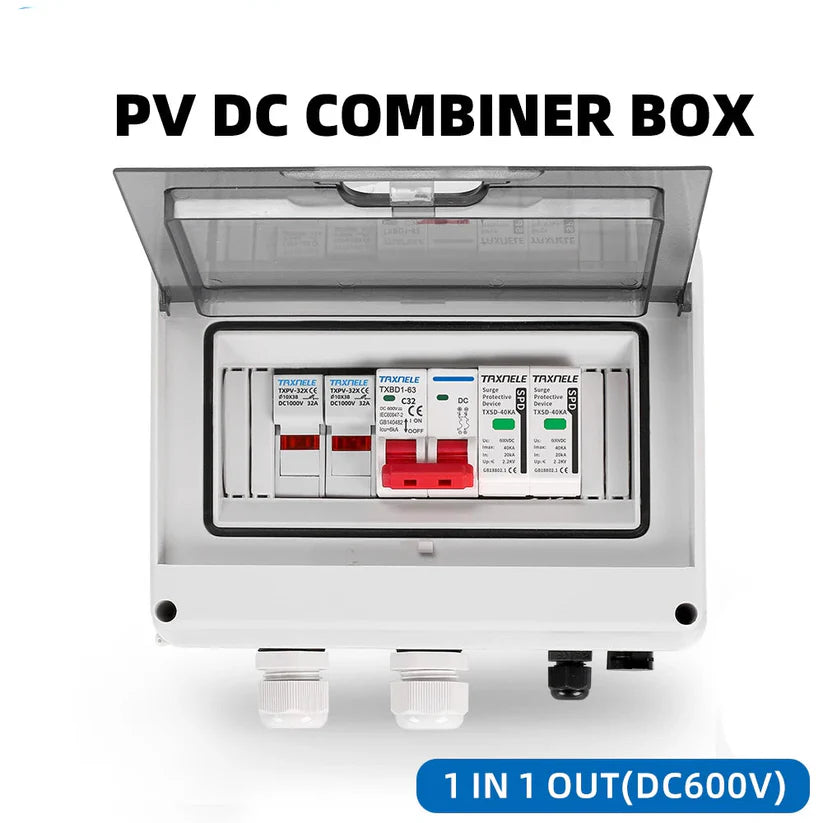

Solar photovoltaic PV DC Combiner Box Surge Lightning Protection 1 input 1 out DC 600V

R930.00

BB Store Credit Earn PreviewEarn approx. R13.95 BB Store Credit1% base • +0.5% weekend. Added after successful checkout and available for your next order.
Payflex Peach PAYMENTS Yoco
Brits Brothers SupportNeed help with this part?Fitment, stock, courier and returns help.
WhatsApp
Use Sales Desk, or choose a rotating WhatsApp support line.
Premium System

Complete Repair Package

Open the package builder to choose your vehicle and repair area. It only loads after click.

This Solar Photovoltaic PV DC Combiner Box offers reliable surge and lightning protection for PV systems, with a single input and output designed for up to 600V DC. Engineered to safeguard your solar …

Fitment Check
RepairMatch™ Fitment
Confirm this part against your vehicle before you order.
Check Fitment
Opens fitment page
Store Credit Deal
ThunderDeal™ Negotiator
Make a serious online offer and turn the approved value into BB Store Credit.
Open Negotiator
Shortcode page
Repair Package
Complete Repair Bundle
Build a matching repair package using this part as the starting point.
Build Bundle
Opens bundle page
Vehicle Search
Vehicle Parts Finder
Search by vehicle and find related parts faster.
Find Vehicle Parts
Opens finder page

This Solar Photovoltaic PV DC Combiner Box offers reliable surge and lightning protection for PV systems, with a single input and output designed for up to 600V DC. Engineered to safeguard your solar array’s electrical components, it ensures system stability by preventing damage from voltage spikes. Ideal for enhancing the longevity and safety of your solar installation while maintaining efficient energy flow. Rated voltage of photovoltaic system DC 600V Max input amp for each string 15A Input strings 1 output strings 1 Surge Lighting protection Category of test II grade protection Nominal discharge amp 20KA Max discharge amp 40KA Volt protection level 3.2KV SPD Max operation voltage DC 600V Poles 2P Structure characteristic Plug push module System Protection grade IP65 Output switch DC circuit breaker Box material PVC Installation method Wall mounting type Operating temperature -25℃-+60℃ Installation indoors/outdoors Mechanical Parameter Width*Height*Depth(mm) 200*155*95

Related Parts

SKU: BB-225101 Category:

Frequently Asked Questions

Confirm fitment before ordering
Quick answers before you order. If anything is unclear, confirm fitment first using your VIN or part number and avoid mistakes.
Helpful product answers
What is the primary function of the Solar Photovoltaic PV DC Combiner Box with Surge Lightning Protection?
This combiner box is designed to consolidate the DC output from solar panels into a single output line, simplifying system wiring. It also provides surge and lightning protection to safeguard your solar installation from voltage spikes, enhancing system reliability and safety.
Can this combiner box handle multiple solar panel inputs?
This specific model features 1 input and 1 output, meaning it is intended for a single string of solar panels. For systems requiring multiple inputs, you would need a combiner box designed with more input channels to accommodate additional panel strings.
What voltage rating does this DC combiner box support?
The combiner box is rated for DC voltages up to 600V, making it suitable for most residential and small commercial solar PV systems. Always ensure your system voltage does not exceed this rating to prevent damage or safety hazards.
How do I properly install the surge protection feature in this combiner box?
Surge protection components are pre-installed within the box, but correct wiring and grounding are essential for effective operation. A common mistake is neglecting proper grounding, which can render surge protection ineffective. Always follow the installation manual and ensure the grounding conductor is securely connected to a suitable earth point.
Is this product suitable for outdoor installation in harsh weather conditions?
While the product is designed for solar PV systems, the specifications regarding weatherproofing are not explicitly stated. Typically, combiner boxes for outdoor use should have an IP rating to resist dust and moisture. Confirm installation environment compatibility or consider additional protective enclosures if needed.
Where can Trade Partners get more information or request parts related to this combiner box?
Trade Partners can find detailed product information and request parts through the Brits Brothers™ Trade Partner portal. For part requests, visit Request a Part or contact support via WhatsApp at https://wa.me/27735925563 for prompt assistance.
