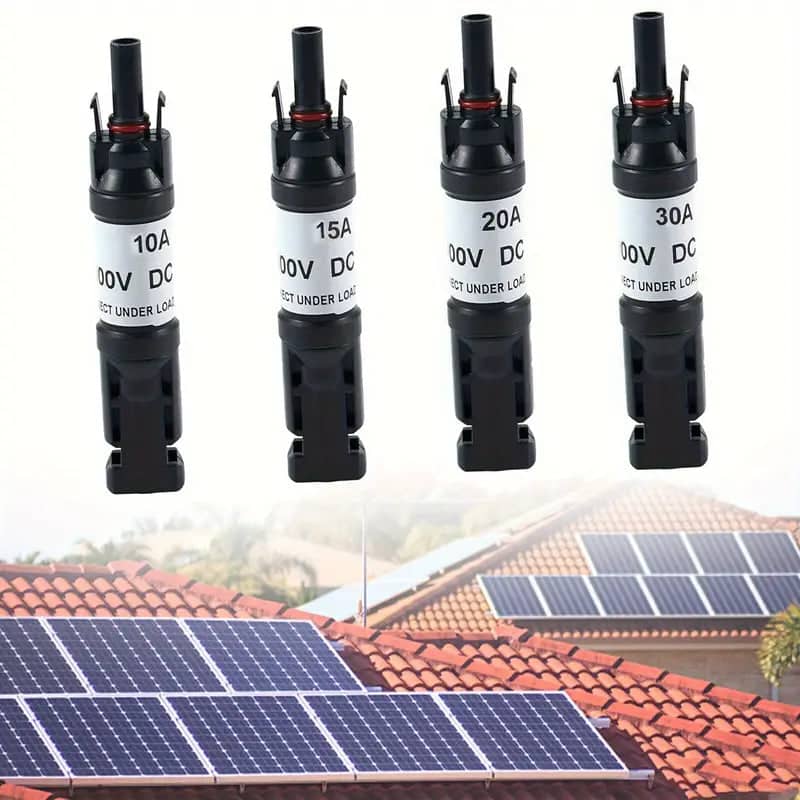

3pcs 30A Solar Panel Diode Connector Photovoltaic MC4 Connector

R351.50

BB Store Credit Earn PreviewEarn approx. R3.52 BB Store Credit1% base. Added after successful checkout and available for your next order.
Payflex Peach PAYMENTS Yoco
Brits Brothers SupportNeed help with this part?Fitment, stock, courier, returns, supplier price or order help.
WhatsApp
Use Live Concierge, or choose a rotating WhatsApp support line.
Premium System

Complete Repair Package

Open the package builder to choose your vehicle and repair area. It only loads after click.

3pcs 30A Solar Panel Diode Connector Photovoltaic PV Compatible MC4 Connector This set of 3pcs 30A Solar Panel Diode Connectors are compatible with photovoltaic solar panels. Made for PV systems, they…

Fitment Check
RepairMatch™ Fitment
Confirm this part against your vehicle before you order.
Check Fitment
Opens fitment page
Store Credit Deal
ThunderDeal™ Negotiator
Make a serious online offer and turn the approved value into BB Store Credit.
Open Negotiator
Shortcode page
Repair Package
Complete Repair Bundle
Build a matching repair package using this part as the starting point.
Build Bundle
Opens bundle page
Vehicle Search
Vehicle Parts Finder
Search by vehicle and find related parts faster.
Find Vehicle Parts
Opens finder page

3pcs 30A Solar Panel Diode Connector Photovoltaic PV Compatible MC4 Connector This set of 3pcs 30A Solar Panel Diode Connectors are compatible with photovoltaic solar panels. Made for PV systems, they offer a high current handling capability of 30A and can withstand harsh environmental conditions. Make secure and efficient connections with these MC4 connectors. Features: 100% brand new and high quality Made of high quality material, durable and practical to use Use a practical, easy-to-use connector between the solar panel and the switch box to prevent reverse current flow The contacts of the connector are copper and tinned for easy soldering. Each end nut has a rubber bushing for air sealing Specifications: Connector Material: PPO+ PC Optional Rated Current: 30A Flame Rating: UL94-V0 Rated Voltage: 1000V (TUV) & 600V (UL) Test Voltage: 6kV (50Hz, Lmin) Insertion / Extraction Force: 50N or less / 50N or More Connection System: Crimp Connection Contact-Resistance of Plug: 5mohm or Less Temperature Range: (-40 degrees Celsius to 125 degrees Celsius) Contact-Material: Copper, Tin Plated Maximum Temperature: 110 Degrees Celsius Insulation Material: PPO Package Includes: 3 x Diode Connector (30A) Please note that 1 set contains 3 identical models

Related Parts

SKU: BB-226088 Categories: , , ,

Frequently Asked Questions

Confirm fitment before ordering
Quick answers before you order. If anything is unclear, confirm fitment first using your VIN or part number and avoid mistakes.
Helpful product answers
What is the purpose of the 3pcs 30A Solar Panel Diode Connector Photovoltaic MC4 Connector?
This connector is designed to link solar panels safely and efficiently, allowing current to flow while preventing reverse current that can damage the panels. It is essential for maintaining the performance and longevity of your solar power system by ensuring proper electrical connections.
Can I use these MC4 connectors with any solar panel brand?
These connectors are generally compatible with most standard solar panels that use MC4-type connections. However, it's important to verify the connector type and current rating of your panels to ensure compatibility and avoid electrical issues.
What is a common mistake when installing these solar panel diode connectors?
A frequent error is not securing the connectors tightly, which can lead to poor electrical contact and potential power loss. Always ensure connectors are firmly clicked together and check for any loose wiring to maintain a reliable connection.
Are these diode connectors suitable for high current applications?
Yes, these connectors are rated for 30A, making them suitable for moderate to high current solar panel setups. Using connectors with a lower current rating than your system can cause overheating and failure, so always match the connector rating to your system's requirements.
How do I request replacement parts or additional connectors?
You can request parts or additional connectors directly through Brits Brothers™ by visiting their Request a Part page. This ensures you get genuine components compatible with your solar setup.
