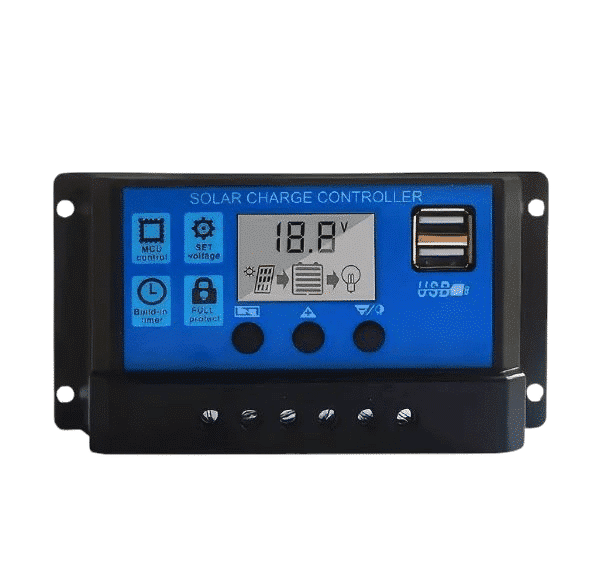

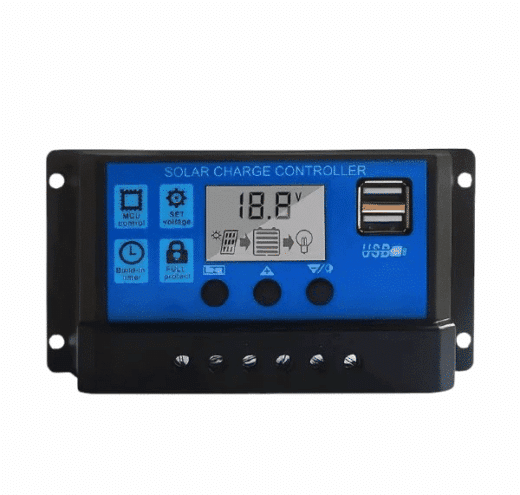

30A Multifunctional PWM Solar Charge Controller with USB
Maximize your solar power setup with this advanced 30A PWM Charge Controller, designed to efficiently manage your solar battery charging while providing versatile USB connectivity for your devices.
Product Highlights
- 30A PWM (Pulse Width Modulation) solar charge controller for efficient charge management
- Multifunctional design supports battery charging, load control, and system protection
- Integrated USB output for charging mobile devices and small electronics directly from your solar system
- Overcharge, discharge, overload, and short circuit protection ensures system safety
- Clear LED indicators for status monitoring and easy setup
- Compact and durable build ideal for residential and commercial solar installations
- Compatible with common 12V and 24V lead-acid batteries (confirm fitment)
Condition & What You Get
This product is supplied in new condition, thoroughly tested to ensure optimal performance right out of the box. When purchasing the 30A Multifunctional PWM Solar Charge Controller with USB, you will receive:
- One 30A PWM Solar Charge Controller
- User manual for easy installation and configuration
- Connection cables and mounting accessories for quick setup
- Warranty documentation providing peace of mind
Shipping, Returns & Trust
At Brits Brothers™, we prioritize customer trust and satisfaction. We partner with The Courier Guy, South Africa’s trusted courier service, to ensure your order is delivered swiftly and securely.
Should you need to return or exchange this product, please review our Refund & Returns policy for complete details. We are committed to hassle-free processes and prompt support.
Need Help or More Info? Contact Us on WhatsApp
If you have questions about availability, fitment, or technical specifications, message us directly on WhatsApp for fast and friendly support!
Technical & Fitment Snapshot
| Specification | Details | Notes |
|---|---|---|
| Charge Current | 30 Amps | Fixed PWM output |
| Battery Voltage | Typical 12V/24V Auto-Detect | Confirm fitment to your system |
| USB Output | 5V USB port for device charging | Standard USB-A connection |
| Protection Features | Overcharge, Over-discharge, Short-circuit | Ensures battery and system safety |
| Operating Temperature | Typical: -10°C to 50°C | Confirm for your environment |
| Dimensions | Compact, typical size approx. 150 x 100 x 40 mm | Confirm exact measurements |
Used Parts Disclaimer
Please note: If purchasing used or refurbished components related to this product, functionality and condition may vary. Brits Brothers™ advises thorough inspection and testing prior to installation. No express or implied warranty accompanies used parts unless explicitly stated.
Explore More or Request Parts
Looking for additional solar equipment or specific components? Visit our Request a Part page to enquire about hard-to-find items or rare stock.
Interested in selling your used vehicle parts? Learn more about our process on the We Buy Used Parts page.
Join our growing business network by becoming a Trade Partner and enjoy exclusive benefits and pricing.
Shop On-The-Go with Our Mobile App
For a seamless shopping experience anytime, anywhere, download the Brits Brothers™ app on your Android device. Manage orders, request parts, and stay updated with the latest inventory directly from your smartphone.
Common Symptoms This Part Solves
The 30A Multifunctional PWM Solar Charge Controller with USB is designed to address multiple common issues that solar power system users frequently encounter. By understanding these symptoms, you can better determine if this controller is the right solution for your setup:
- Battery Overcharging: If you notice your battery swelling, leaking, or quickly losing capacity, it could be from an uncontrolled charge current. This controller prevents overcharging by modulating charging power efficiently.
- Rapid Battery Discharge: Unexpected battery drainage or the inability to hold a charge often indicates insufficient load control. This product automatically disconnects loads to protect the battery, extending its usable life.
- System Shutdowns or Power Failures: Sudden loss of power to solar-connected devices due to overcurrent or short circuits frequently requires a charge controller with comprehensive protection, such as this one.
- Fluctuating USB Device Charging: Inconsistent or incomplete charging of USB-powered devices can stem from lack of integrated regulation; this controller’s built-in USB port provides consistent 5V output optimized for electronics.
- Unclear Solar System Operation Status: Difficulties in diagnosing charging cycles or system health are mitigated by this controller’s clear LED indicators, helping users easily monitor system function without needing specialized equipment.
Using this charge controller can dramatically improve system reliability, prevent battery damage, and ensure your solar installation works optimally under various environmental conditions and loads.
Buying Guide: How to Verify Compatibility
Ensuring the 30A Multifunctional PWM Solar Charge Controller with USB fits your solar setup correctly is crucial to performance and safety. Follow these guidelines when verifying compatibility:
- Battery Voltage Matching: Confirm whether your battery bank operates on 12V or 24V. This controller auto-detects, but it’s best practice to double-check your battery specifications to prevent mismatches.
- Maximum Current Requirements: Check your solar panel array’s peak current output; it should not exceed 30A for this controller. Oversizing can damage the unit or compromise safety features.
- Physical Dimensions: Measure available mounting space and compare it with the controller’s approximate dimensions (150 x 100 x 40 mm) to ensure easy installation without crowding or airflow obstruction.
- Connector Types and Wiring: Examine the controller’s cable interfaces to ensure compatibility with your existing wiring harness or connectors. If uncertain, having photos or manuals handy helps clarify correct connections.
- System Labels and Certifications: Review any markings on your solar equipment and batteries for compliance with standard voltages and safety ratings. Confirm the controller meets local electrical standards or certifications.
For best results, gather photos of your current solar system setup and any related components before purchase. This documentation assists customer support or a professional installer in advising the best fitment.
Installation Notes and Best Practices
Proper installation of your 30A PWM Solar Charge Controller with USB is essential for system longevity, safety, and peak performance. Consider the following general notes and recommended practices:
- Professional Installation Recommended: Unless you have experience with electrical and solar system wiring, engage a qualified solar technician or electrician to install this controller.
- Installation Environment: Mount the controller in a dry, ventilated area protected from direct sunlight and extreme temperatures to avoid overheating or moisture damage.
- Proper Polarity Connection: Double-check positive and negative terminals for battery, solar panel, and load connections. Reversing polarity can damage the controller and connected systems.
- Use Correct Wire Gauge: Adhere to wire thickness recommendations based on the 30A maximum current rating. Using wires that are too thin risks overheating and voltage drops.
- Disconnect Power During Installation: Always disconnect solar panels and batteries before wiring the controller to prevent electric shock or short circuits.
- Secure Mounting: Attach the controller firmly using the supplied mounting accessories or appropriate hardware to minimize vibration and physical stress.
- Adhere to User Manual Procedures: Follow step-by-step instructions included to configure battery type, charging modes, and load control according to your system’s requirements.
By carefully following these guidelines, you ensure your solar system’s safety and maximize the charge controller’s functionality and lifespan.
Maintenance and Care Tips for Longevity
Maintaining your 30A Multifunctional PWM Solar Charge Controller prolongs functionality and prevents costly repairs or replacements. Implement these care tips to keep your system running smoothly:
- Regular Cleaning: Wipe the controller’s exterior with a dry cloth periodically to remove dust, dirt, or insects that might clog ventilation openings.
- Inspect Connections: Check all terminals and wiring for corrosion, looseness, or wear every three months and tighten or replace as necessary.
- Monitor LED Indicators: Stay attentive to status lights. Unusual blinking patterns or color changes often indicate system issues requiring prompt attention.
- Check for Firmware Updates: Although basic PWM controllers do not often require firmware updates, consult the manufacturer or Brit Brothers™ support for any available upgrades improving performance or safety.
- Environmental Protection: Avoid exposure of the controller to water ingress or chemicals. Use appropriate enclosures or covers if installed in harsh conditions.
- Battery Health Correlation: Monitor your battery’s health as deteriorating batteries can cause abnormal charging loads, potentially stressing the controller.
Consistent maintenance prevents common causes of failure and helps you quickly detect issues before they escalate, ensuring your solar setup remains reliable throughout its service life.
Quick Fitment FAQs
- Q: Can I use this controller with a 48V battery system?
- A: This specific 30A PWM controller supports 12V and 24V systems only. For 48V setups, consult a dedicated higher voltage controller.
- Q: Does the controller support lithium-ion batteries?
- A: Primarily designed for lead-acid batteries, compatibility with lithium-ion depends on the charging profile. Professional advice is recommended before use with lithium batteries.
- Q: How do I reset the controller if it stops working?
- A: Disconnect all power sources (solar panel and battery) for about 5 minutes, then reconnect starting with the battery to reset the controller safely.
- Q: Can multiple controllers be used together in one solar system?
- A: Generally, each battery bank requires its own controller. Using multiple controllers for one battery may lead to conflicting outputs and is not advised without professional design.
- Q: Is the USB port powered even without a battery connected?
- A: The USB output typically requires proper battery voltage to function and is not intended for direct use from the solar panel input alone.
