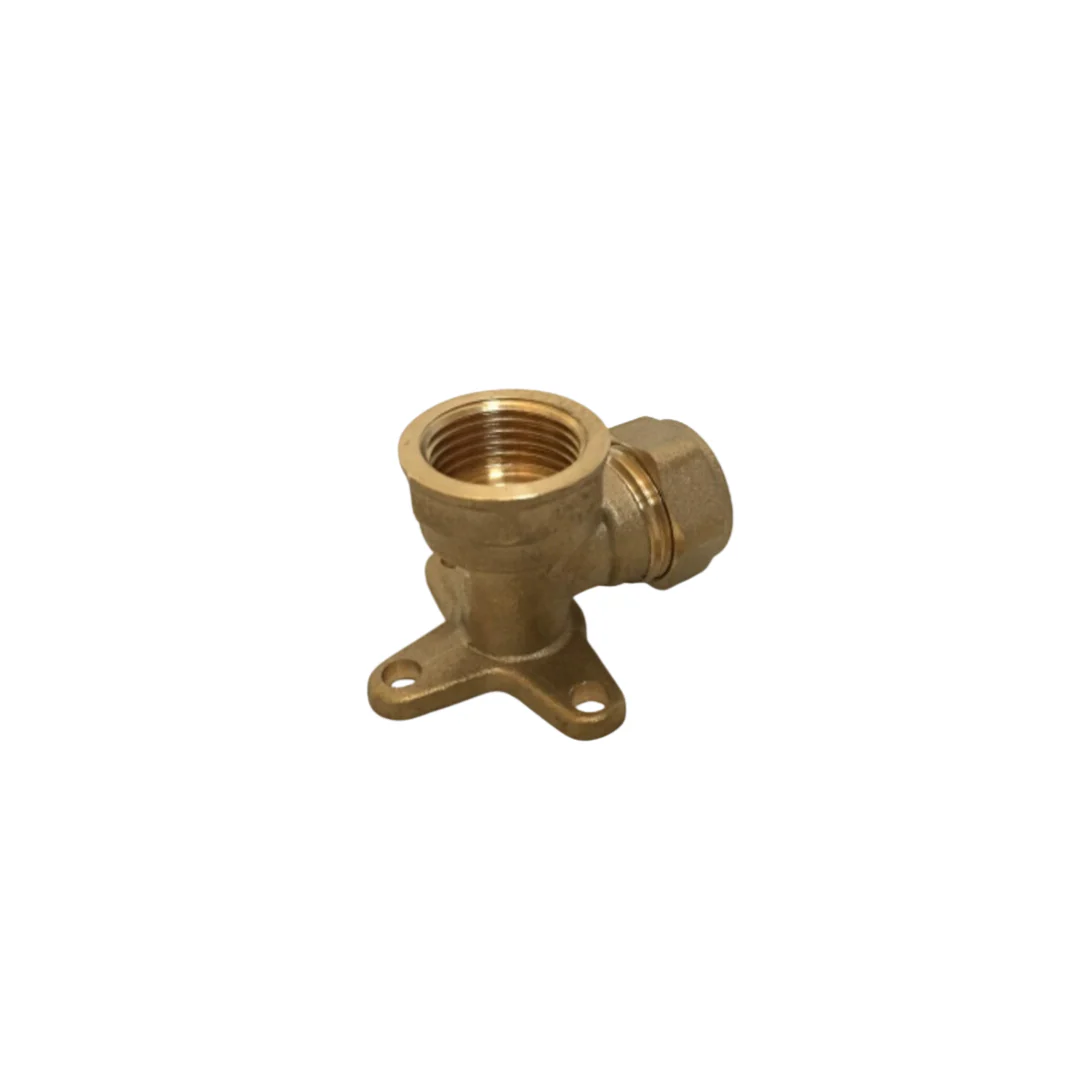

Compression Elbow 90° 15mm (Wallplate)

R199.00

BB Store Credit Earn PreviewEarn approx. R1.99 BB Store Credit1% base. Added after successful checkout and available for your next order.
Payflex Peach PAYMENTS Yoco
Brits Brothers Support

Need help with this part?

Fitment, stock, courier and returns help.
Click any service to learn more.
Repair package

Complete Repair Package

Open the package builder to choose your vehicle and repair area. It only loads after click.

Compression Elbow 90° 15mm (Wallplate) is an automotive compression fitting elbow designed for 15mm pipes and connections with a 90-degree angle and wallplate mount

Compression Elbow 90° 15mm (Wallplate) is designed to connect 15mm pipes at a right angle, typically used in plumbing and water supply systems. This component allows a neat and secure change of pipe direction, especially where wall-mounted fixtures require a flush connection. It fits onto wallplates for stable mounting, making it ideal for areas where a fixed, durable elbow joint is necessary.

This compression elbow is a crucial part in ensuring tight, leak-free joints between pipes without the need for soldering or welding. The 90-degree angle facilitates efficient redirection of water flow while maintaining system integrity. When shopping for replacement or new installation, comparing the size (15mm diameter) and the orientation of your old elbow is essential for compatibility.

Buyers should verify the pipe dimension and intended installation method against this unit, especially focusing on the compression fitting and wallplate interface. This part is a practical solution for plumbing repairs or new setups requiring a solid pipe elbow connection at a right angle.

  • Right-angle (90°) pipe connector
  • Fits 15mm diameter pipes
  • Wallplate mounting for stability

Need help matching this item to your vehicle? Use Vehicle Parts Finder, Request a Part or Platinum Sales Desk with your VIN, engine number, part number or clear photos.

Related Parts

SKU: BB-403097 Category: Tags: , , , ,

Frequently Asked Questions

Confirm fitment before ordering
Quick answers before you order. If anything is unclear, confirm fitment first using your VIN or part number and avoid mistakes.
Helpful product answers
What is the primary use of the Compression Elbow 90° 15mm (Wallplate)?
This compression elbow is designed to connect 15mm copper pipes at a 90-degree angle, typically used in plumbing installations where a neat corner turn is required. The wallplate feature allows for secure mounting to a wall, providing stability and a professional finish. It is ideal for tight spaces where pipe routing needs to be precise.
How do I properly install the Compression Elbow 90° 15mm (Wallplate)?
To install, first ensure the copper pipe ends are clean and free from burrs. Slide the compression nut and ring onto the pipe, then insert the pipe fully into the elbow fitting. Tighten the compression nut by hand, then use a wrench to secure it firmly without over-tightening, which can damage the fitting. Secure the wallplate to the wall using appropriate screws for a stable installation.
Can this compression elbow be used with plastic pipes?
No, the Compression Elbow 90° 15mm (Wallplate) is specifically designed for use with copper pipes. Using it with plastic pipes may result in leaks or fitting failure. For plastic pipes, consider using fittings designed for those materials to ensure a secure and leak-free connection.
What common mistake should I avoid when using this compression elbow?
A frequent error is over-tightening the compression nut, which can deform the olive (compression ring) and cause leaks. To avoid this, tighten the nut firmly by hand and then use a wrench to give it an additional quarter to half turn. This ensures a proper seal without damaging the fitting.
Is this product suitable for Trade Partners looking for reliable plumbing fittings?
Yes, the Compression Elbow 90° 15mm (Wallplate) is a reliable choice for Trade Partners requiring durable and easy-to-install plumbing components. Its wallplate design facilitates quick and secure mounting, making it a practical option for professional plumbing projects. For more details or bulk orders, Trade Partners can visit the Trade Partners page.
