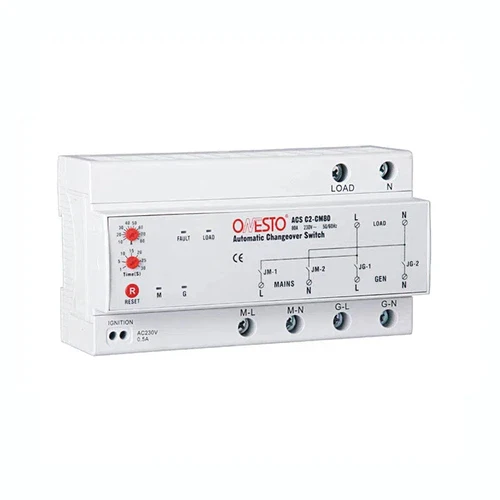

ACS C2-CM80 For one generators connection 10A-80A adjustable current 1s-30s adjustable restoring delay time Operation status with LED indication Automativ Generator ON/OFF ignition Automatic changeover switch No. of poles 1P+N No.

ACS C2-CM80
For one generators connection
10A-80A adjustable current
1s-30s adjustable restoring delay time
Operation status with LED indication
Automativ Generator ON/OFF ignition
Automatic changeover switch
No. of poles
1P+N
No. of generator connection
1
Rated current
10A-80A Adjustable (Mains & Generator)
Rated voltage
230V AC
Operating voltage range
0.75-1.15 of Un
Rated frequency
50/60HZ
Power consumption
4.5VA,230V AC
Rated insulation voltage
500V
Rated impulse voltage
1.5kV
Dielectric strength
2.0kV
Duty
Uninterrupted
LED indication
Mains:Blue,Generator:Blue,Load:Green,Fault:Red
Changeover delay time
Mains to Generator:3s, G1 to G2:3s ,Generator to Mains:1-30s Adjustable
Changeover line
Live and Neutral Line
Switching capacity
80A@230V AC (COSφ=1),30A with inductive load COSφ=0.6
Utilization catagory
AC 21A (IEC 60947-3),AC 31B (IEC60947-6)
Ambient temperature
-5 to 55℃
Pollution degree
2
Protection class
IP22
Mounting
DIN RAIL (35×7.5mm)
Mounting position
Horizontal,Vertival
Terminal capacity
16-25mm
2
Dimension
162x89x70mm
Standard conformity
IEC 60947-7/IEC 60947-3

SKU: BB-428254

Frequently Asked Questions

Confirm fitment before ordering
Quick answers before you order. If anything is unclear, confirm fitment first using your VIN or part number and avoid mistakes.
Helpful product answers
What is the primary function of the Automatic Changeover Switch DIN Onesto?
The Automatic Changeover Switch DIN Onesto is designed to automatically switch the power supply between the main source and a backup generator. This ensures continuous power without manual intervention during outages. It is ideal for maintaining uninterrupted electricity in homes or businesses.
Is the Automatic Changeover Switch DIN Onesto compatible with standard DIN rail mounting?
Yes, the Automatic Changeover Switch DIN Onesto is specifically designed for DIN rail mounting, making it easy to install in standard electrical distribution boards. This compatibility allows for neat and secure integration into existing electrical setups.
How does the Automatic Changeover Switch handle power outages?
When the main power supply fails, the switch automatically transfers the load to the backup generator within seconds. Once the main power is restored, it switches back to the primary source seamlessly. This automatic operation helps prevent downtime and protects connected equipment.
What are the delivery and packaging details for this product?
The Automatic Changeover Switch DIN Onesto is securely packaged to prevent damage during transit. Delivery times may vary depending on your location, but Brits Brothers™ uses reliable couriers to ensure safe and timely arrival. For specific delivery inquiries, you can contact us directly via WhatsApp.
Can Trade Partners get special support or pricing for the Automatic Changeover Switch DIN Onesto?
Yes, Trade Partners can access dedicated support and potentially special pricing for this product. Brits Brothers™ encourages Trade Partners to reach out through the official Trade Partner portal for tailored assistance and offers. More information is available at Trade Partners.
