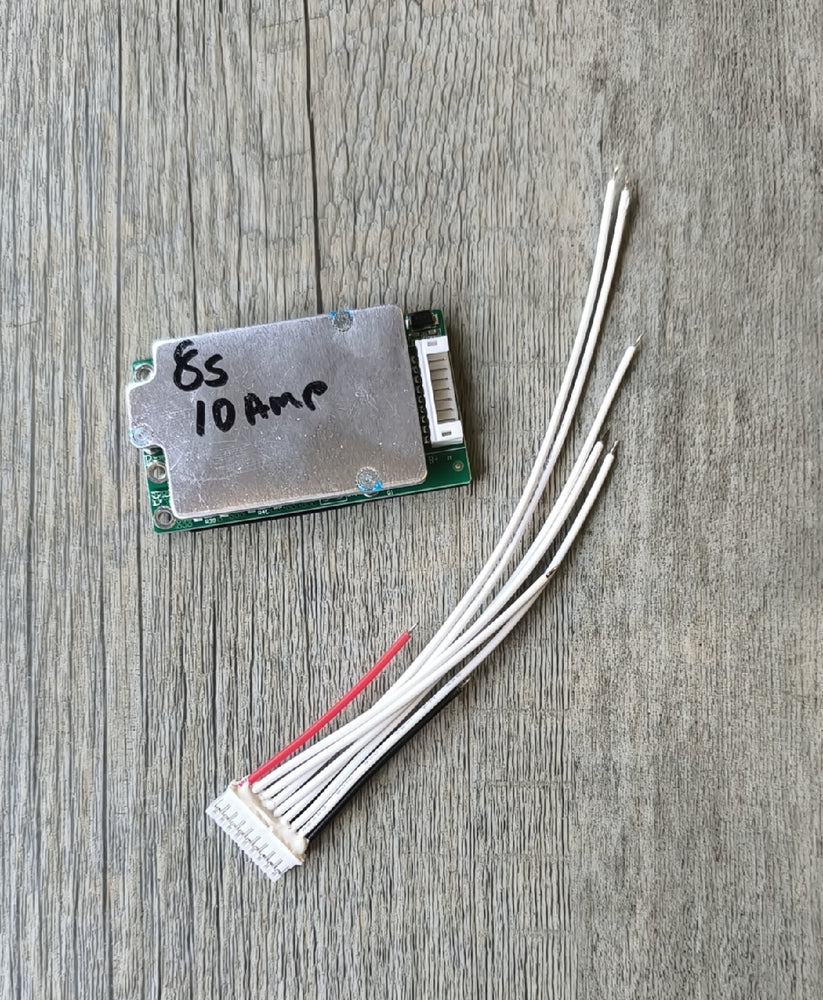

8S 24V LiFePo4 Battery 3.2V 10A BMS Battery Protection Board

The 8S 24V LiFePo4 Battery with a 10A BMS Battery Protection Board is a reliable power source for various applications. It offers high performance and safety features to protect your battery from overcharging, over-discharging, and short-circuiting. Charging Charge current: Same as continuous current Charging voltage：29.6V Over charge protection Overcharge detection voltage：3.7V±0.05V Overcharge release voltage：3.6V±0.05V Overcharge protection delay：600uS Over discharge protection Over discharge protection voltage: 2.2V ± 0.1V Over discharge release voltage：2.5V±0.1V Over discharge detect delay：600uS Balance Balance detection voltage：3.55V Balanced release voltage：3.55V Balance current：35mA±5mA Discharge protection Instantaneous current: continuous current * 2.5 Overcurrent detection delay：600uS Over discharge detect voltage：100mV Overcurrent protection release condition: Disconnect load Short circuit protection Short circuit protection condition: External load short circuit Short circuit detection delay：600uS Short circuit protection release condition: Disconnect load Inner resistance Main circuit on-resistance：≤10mΩ Self electricity consume Working current：≤100uA Sleep current (when the battery is over-discharged)：≤20uA Working Temp temperature range：-20℃/+80℃ Use the array of operations: 1. The cable starts from the black thin wire connecting B-, the second wire (the thin red wire) is connected to the positive pole of the first battery, and the positive pole of each battery is connected in turn until the last red wire is connected to B+; 2. After connecting the cable, do not insert the plug directly into the BMS. Measure the voltage between each two adjacent metal terminals on the back of the plug. If the voltage of the terpolymer battery should be between 2.8V and 4.2V, the iron-lithium battery should be between 2.5V and 3.65V. 3. After correct wiring array and voltage confirmation, insert the BMS socket. 4. The protective board B line (blue thick line) is connected to the negative pole of the battery pack. 5. After the wiring is completed, measure whether the total voltage of the battery pack and the total voltage passing through the BMS are equal. If they are different, check again according to the above wiring array. Precautions 1. Lithium battery protection boards of different voltage platforms cannot be mixed. For example, iron-lithium batteries cannot use the protection board of ternary batteries; 2. The design parameters and conditions of use must be followed during use; 3. The charging and discharging currents must not exceed the rated value; 4. Please use the protective plate within the specified working temperature and ensure a good heat dissipation environment around the protective plate; 5. Do not disassemble or change the components of the protection board by yourself; 6. Avoid contact between the heat sink and the battery core and nickel strip during assembly.
